Trafx Bicycle Counter

Key Features

• Advanced Microelectronic Design

• Optimized to Detect and Count Bikes on Trails

• Designed to be Buried

• Small and Easy to Hide — Reduces Vandalism Risk

• Long Battery Life

• Large Memory Capacity (store > 400 million counts)

• Field-Proven, Generation III Design (> 10 year history)

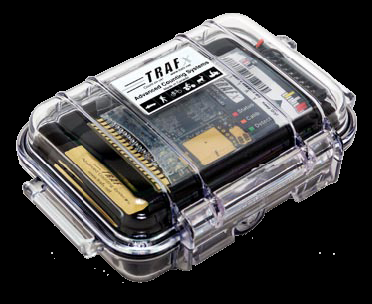

Designed to be Buried this counter is designed to be buried beside or in the middle of a trail, depending upon the trail’s width. When a bike passes, a tiny magnetometer coupled with advanced embedded processing software, detects and records a count. It is mainly intended for mountain bike trails, but can also be installed on regular bicycle paths under 2m (6.6ft) wide. Quick Installation

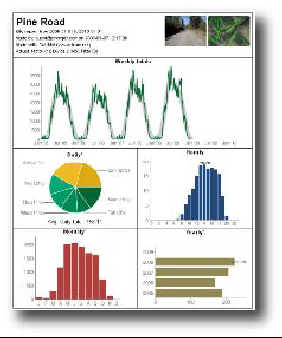

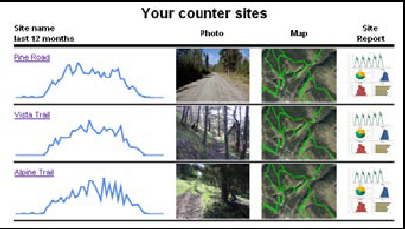

The low-power design ensures battery efficient operation, and because it is small, this counter is quick to install. It uses three standard “C size” alkaline batteries. 10.5cm (4.1in) 14cm (5.5in) Connect the counter to a PC with the TRAFx Dock to configure it. Or, use the Dock as a stand-alone "shuttle" to download data in the field. Use TRAFx DataNet to view and manage your data and produce professional reports in seconds.

Try the free Demo at www.trafx.net





Installation Options

The TRAFx Mountain Bike Counter comes pre-programmed and ready to use as the TRAFx OHV Counter or the TRAFx Vehicle Counter, at no extra charge.

Simply change the mode when configuring the counter. Also, it can be quickly and easily converted to the TRAFx Infrared Trail Counter by ordering a low-cost

conversion kit. Visit www.trafx.net for details


Features

• LCD tally display

• Conversion kit

• Extended 5-year warranty

• Hourly or daily totals, or timestamps

-14 000 hourly or daily totals = > 400 million counts

-14 000 timestamps

• Flexible installation options (see above)

• Proprietary design for detecting bicycles

• User programmable modes/settings

-Programmable settings include:

*Real-time clock *Start date/time

*Detection range *Digital sampling parameters

*Delay after event *Site/counter name

• Three colour-coded LEDs indicate status of operation-green light flashes upon detection

• Digital readout of battery voltage level (e.g., 4.2V)

• Automatic low battery warning








































CASE:

 14cm x 10.5cm x 5cm (5.5in x 4.1in x 2in); weatherproof

WEIGHT:

 250g (8.8oz) (without batteries)

POWER:

 "C size" batteries; alkaline (e.g., Duracell) or lithium

BATTERY LIFE:

 7 to 8 months max. with three alkalines

20 months max. with one lithium

DETECTION RANGE:

2m (6.6ft); see diagrams above

DATA TYPE:

ASCII; .TXT file type

DIGITAL MEMORY DESIGN:

Data and settings are retained even

when batteries are replaced or die

TIME KEEPING:

Quartz clock; 20ppm accuracy

OPERATING TEMPERATURE:

-40C (-40F) to +70C (158F)

SENSOR TYPE:

 Low-field geomagnetic; 14-bit resolution


COMMUNICATIONS:

 RS232 serial; 115,000 baud

OTHER:

 Gold-plated PCB, silicon conformal protected electronics, electrostatic discharge protection; short circuit protection; RoHS (lead-free)

WARRANTY:

 One year parts and labour.
